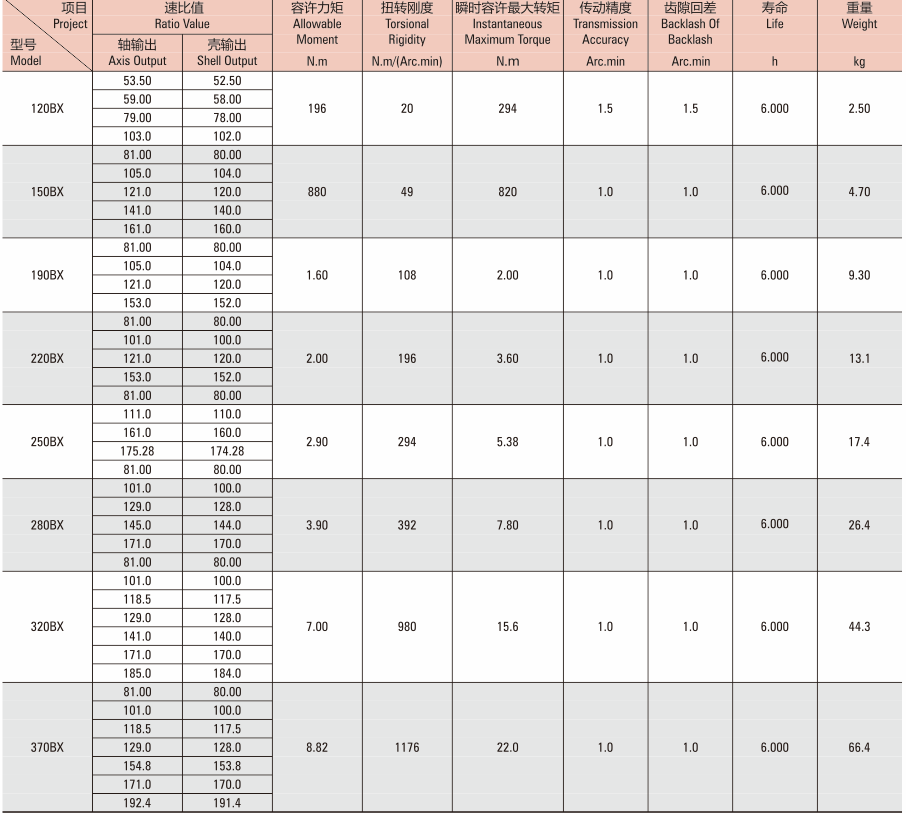

表E系列技术参数

E系列外形图      E Series outline dimension drawing

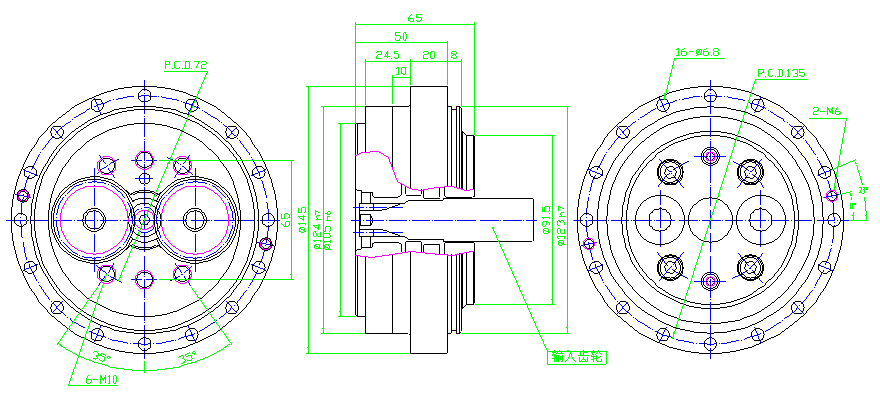

120BX-E 外形图 120BX-E Outline Drawing

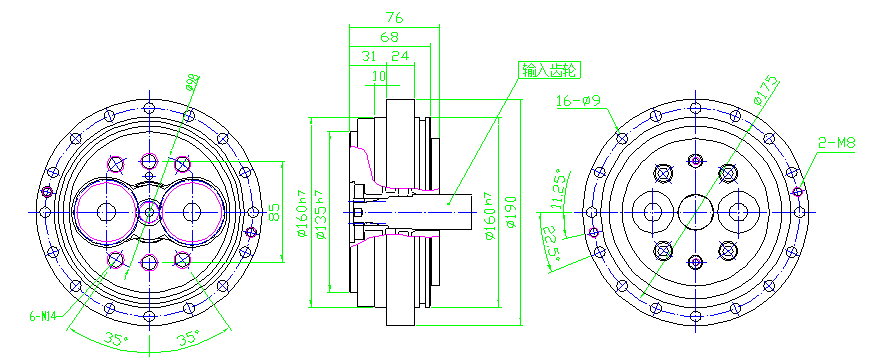

150BX-E 外形图 150BX-E Outline Drawing

190BX-E 外形图 190BX-E Outline Drawing

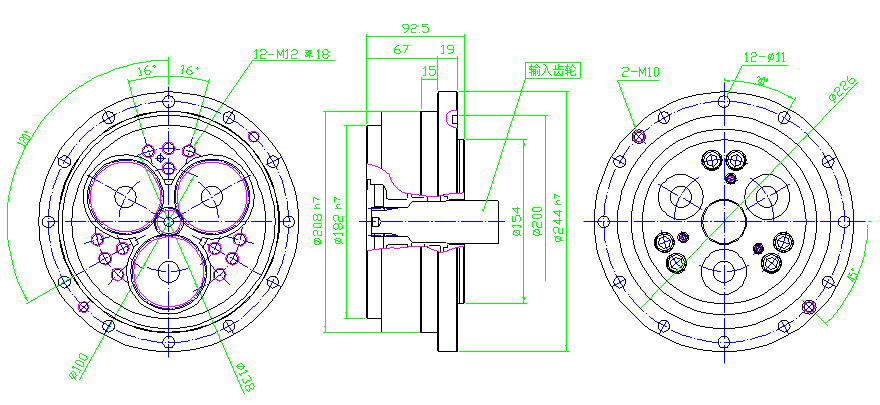

220BX-E 外形图 220BX-E Outline Drawing

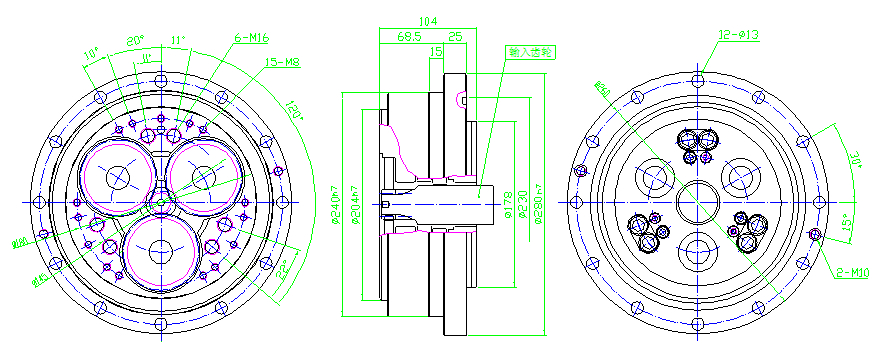

250BX-E 外形图 250BX-E Outline Drawing

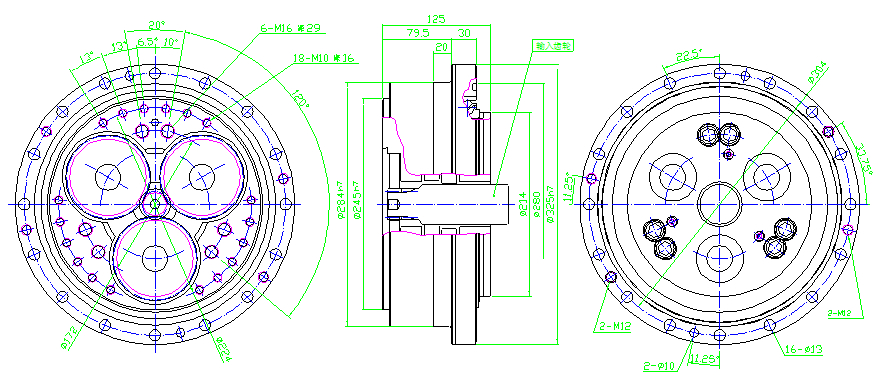

280BX-E 外形图 280BX-E Outline Drawing

320BX-E 外形图 320BX-E Outline Drawing

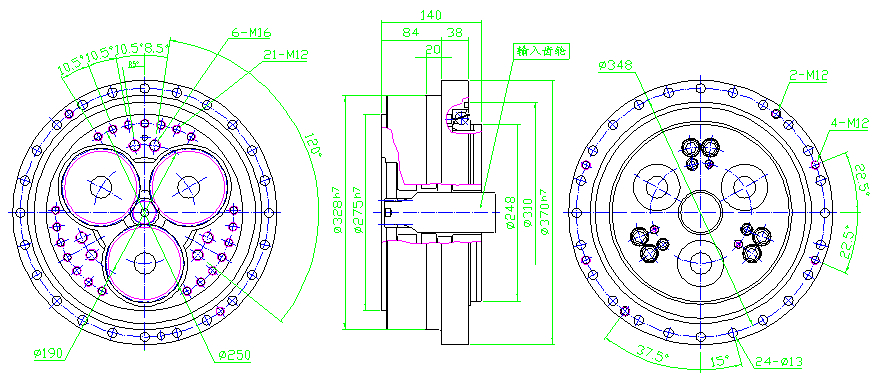

370BX-E 外形图 370BX-E Outline Drawing
